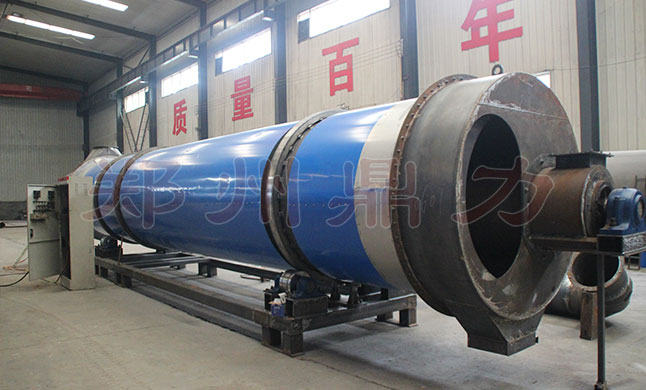

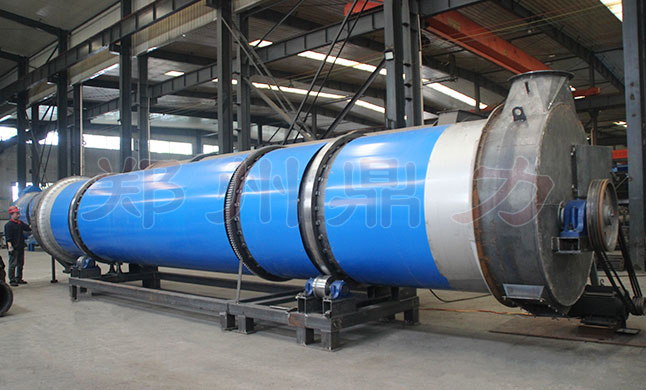

1. Scope of application The revolving cylinder dewaterer is widely used in food, feed, chemical, mine, and fertilizer making industry and the like. According to requirements of the drying products, different heat sources can be adopted such as directly heated air furnace, indirectly heated air furnace, heat conduction oil, electrical heating, and steam, etc. This machine is applicable to dewatering all kinds of mash and residues with a water content less than 85%, such as brewery mash, alcohol mash, fruit residue, gruffs, saccharified residue, fecula, poultry dung, tailings, etc, and it has a good effects on exploring new feed resource, reducing the raising cost, and lessening environmental pollution. 2.Mechanical Structure and Operating Principle The directly heated revolving cylinder dewaterer mainly consists of heat supply source, feeding machine, revolving cylinder, discharging machine, induced-draft fan, tripper, and power distribution cabinet. After entering the dryer, the wet material evenly distributes in the dryer and fully contacts with the hot air when flipped by the lifting plates evenly arranged in the roller, this will quicken the heat transfer and mass transfer. During the drying process, with action of the inclined lifting plate and heat medium, the dried products are discharged from the star-shape discharge valve in another side of the dryer. 3.Main Characteristics 1.The revolving drum is characterized by a high degree of mechanization, high production capacity, and continuous running;
2.Excellent and simple structure, smooth running of the material in cylinder, convenient operation;
3.Less breakdown, low maintenance cost and low power loss
4.Wide application and even drying effect Brewery Mash Dryer
